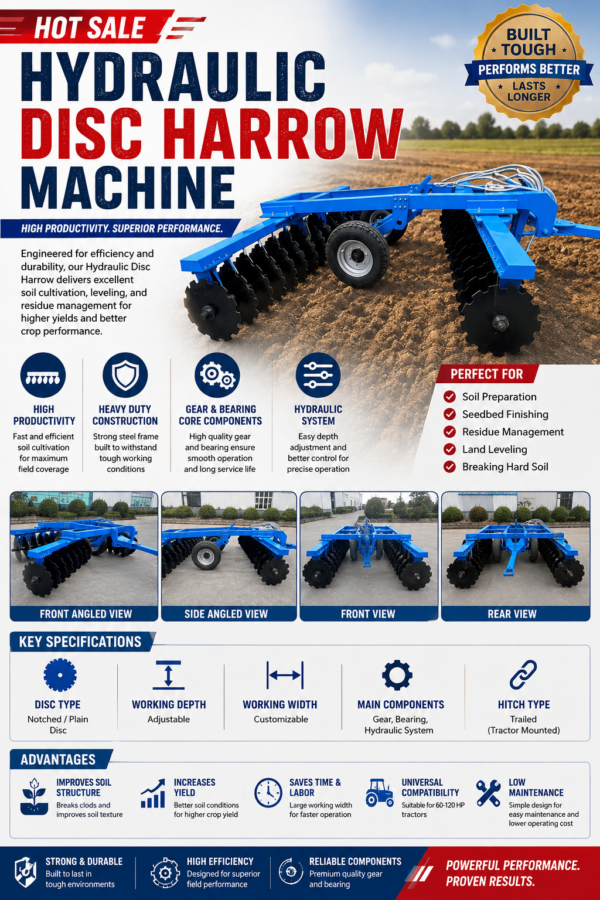

Hydraulic Disc Harrow Machine | Heavy Duty Trailed Tractor Disc Harrow for High Productivity Farming

Hot Sale Hydraulic Disc Harrow Machine High Productivity Farm Machinery Trailed Tractor with Gear and Bearing Core Components Tractor Harrow

Hot Sale Hydraulic Disc Harrow Machine High Productivity Farm Machinery Trailed Tractor with Gear and Bearing Core Components Tractor Harrow A farm implement with rows of rotating sharp discs, used to break soil clods, smooth the ground, and mix crop residues, refining the seedbed post-ploughing.

Model	Unit	1.6	1.8	2.0	2.2	2.4	2.5
Width of cut	mm	1600	1800	2000	2200	2400	2500
Depth of cut	mm	140	140	140	140	140	140
Q’ty of disc	pcs	14	16	18	20	22	24
Weigh	kg	350	380	420	470	540	650
Tractor power	hp	30	40	50	60	70	80

It can also replace plows for soil plowing operations on cultivated land. High homework efficiency, reasonable power utilization, strong ability to enter and break soil, smooth surface after raking, loose and broken soil, and strong adaptability to heavy and weed prone land. This rake has the advantages of absorbing advanced products of the same kind abroad.

Designed according to standards, the whole machine adopts a combination structure, with a square welded pipe integral rigid rake frame as the main body, equipped with hydraulic lifting and transportation wheels, spring leveling mechanism, and a special outer spherical inner square hole sealed rolling bearing for circular disc rakes, Reasonable structure, sturdy and durable, easy to transport, small turning radius, easy to adjust, and easy to maintain, it is currently an advanced circular disc rake product in China
