Mini Farm Tractor Backhoe Loader JCB 3CX with Front Loader
Mini Farm Tractor Retroexcavadora Usada with Front Loader and Backhoe JCB 3CX

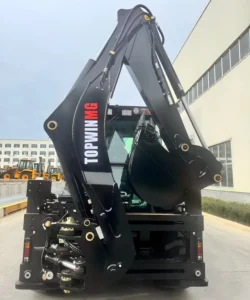

The Mini Farm Tractor Backhoe Loader with Front Loader and Rear Backhoe is a versatile machine designed for agriculture, construction, landscaping, and municipal maintenance. Combining a powerful front loader with a high-performance rear backhoe, it handles digging, trenching, loading, grading, and material transport efficiently. The spacious operator cabin provides enhanced comfort and visibility, while the advanced hydraulic system delivers smooth, responsive control for demanding tasks. Built for durability and productivity, this compact backhoe loader is an excellent solution for farms, contractors, rental fleets, and infrastructure projects.
Product Description
1. Luxury enlarged cabin, luxury seat , Cabin with hydraulic forward tilting function, easy maintenance.2. The top canopy of the cabin can be removed for container delivery.
3. Streamline enlarged fuel tank with tilting oil port, easy to refill
4.Hydraulic componentes use famous brand,with long working life and stable performance;oversize water tank,high-temperature resistant;
5. Large radiator suitable for very hot area.
6. Hydraulic steering system , easy to control.
Backhoe Loader Standard Configurations:
TB388 backhoe loader
Loading bucket 1cbm,
Backhoe bucket 0.3cbm,
Yuchai YC4A105Z-T20 engine,
Fixed shaft power shift transmission, 2F/2R,
Dry axle, 4×4 drive,
Pilot control,
Cabin without Air-conditioning,
One unit by 1x40feet container
Optional:
Cummins 4BTA3.9-C100 (74KW) engine,
AC,
LCD display instrument panel,
Carraro transmission
Backhoe Loader main features:
The integral body frame with more stable operating condition, more suitable for digging work.
The excavating working structure is side shift type, higher strength, good structural stability; and the loading end adopt eight -bar linkage mechanism.
The adopts larger section, improving the rigidity and deformation resistance.standard excavator bucket with strengthened and thicker steel.
Rear and front body, with small rotary radius,hydraulic steering,comfy and convenient to operate. heavy duty hinge joint and hydraulic pipe protection.
Lifting enlarge operator cabin with secure glass and wide field, comfortable steering wheel, high quality seat and suitable joystick control.
1 Hydraulic walking , with Chinese best torque converter , contiuously variable transmission;Service brake is air over hudraulic discc brake on 4 wheels, with blast pump.
2. It have all the functions of 180°wheel excavator and the same wheel loader.
3. Excellent operating performance with high working efficiency
4. All kinds of attachments are optional,such as snow blade,road sweeper,hydraulic hammer,grapple, pallet fork, to meet different customer’s requirement.
5.Can equipped with ROPS cabin as optional.
6.Can equipped with Air conditioner,break hammer,4in 1 bucket,6 in 1 bucket,quick hitch and pre-breaking line as optional.
Backhoe loaders specifications:
| Transport Dimension | Overall Operating Weight | 8200KG |
| mm L*W*H | 6230×2365×3752 | |
| Wheel base | 2200mm | |
| Min. Ground Clearance | 300mm | |
| Bucket Capacity | 1.0m3 | |
| Breakout Force | 38KN | |
| Loading Lifting Capacity | 2500KG | |
| Bucket Dumping Height | 2650mm | |
| Bucket Dumping Distance | 1025mm | |
| Digging Depth | 52mm | |
| Backhoe Capacity | 0.3 m3 | |
| Max. Digging Depth | 4085mm | |
| Swing Angle of Excavator Grab | 190 degree | |
| Max. Pulling Force | 39KN | |
| Engine | Model | YC4A105Z-T20 |
| Rated Power | 75KW | |
| Steering System | Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 degree | |
| Min. turning radius | 6581mm | |
| Pressure of the system | 12Mpa | |
| Axle | Manufacturer | Feicheng Axle Factory |
| Main Transmission Type | Double Reduction | |
| Final Reducer | Single Stage Final Reducer | |
| Rated Loader of Axle | 4/18.5t | |
| Torque Converter | Model | YJ280 |
| Type | Single-stage Three Elements | |
| Max. Efficiency | 84.40% | |
| Inlet Pressure | 0.4Mpa-0.55 Mpa | |
| Outlet Pressure | 1.2Mpa-1.5 Mpa | |
| Cooling Method | Oil-cooling Pressure Circulation | |
| Gearbox | Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa-1569 Kpa | |
| Gears | Two Gears Ahead, Two Gears Astern | |
| Max.Speed | 22Km/h | |
| Tyre | Model | 14-17.5/19.5L-24 |
| Pressure of Front wheel | 0.22 Mpa | |
| Pressure of Back Wheel | 0.22 Mpa | |
| Brake System | Service Brake | Air Over Oil Caliper Brake |
| External Type | ||
| Self-regulation | ||
| Self-balance | ||
| Emergency Brake | Operation Power Implementing brake | |
| Manual Operation Power Terminating Brake | ||
| Hydraulic System | Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN | |
| Bucket Lifting Time | 5.4S | |
| Bucket Lowering Time | 3.1S | |
| Bucket Discharge Time | 2.0S |
Jack Hammer Or Breaking Hammer Or Breakers, Quick Hitches, Pallet Forks, Fork Frame, Auger Or Earth Drill,
Thumb Bucket,Excavator Buckets,Sweeper,Grapple,Ripper,Rake,Jaw Bucket,
Shovels,Hand Held Tools,Compactor, Patch Planer Extending dippers
