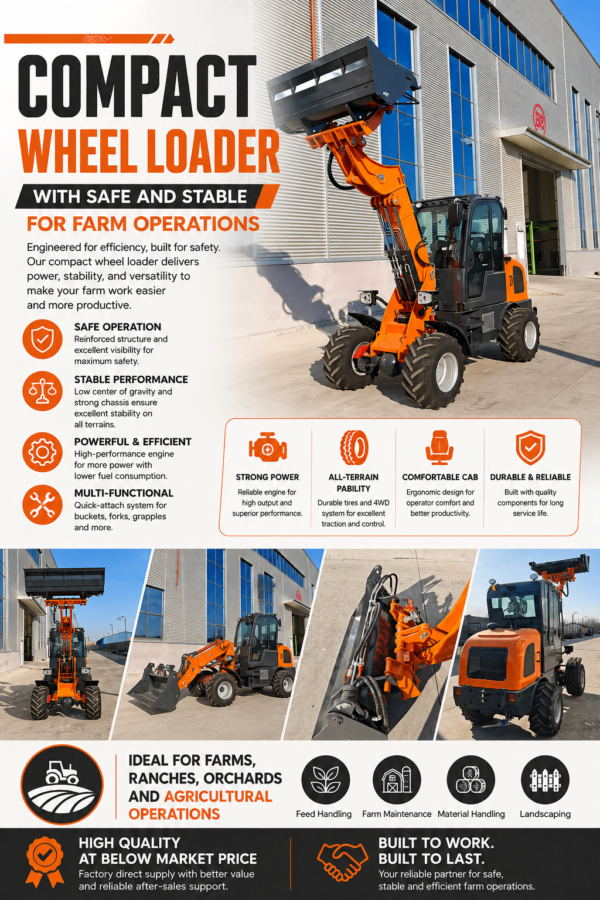

Hzm811t Compact Wheel Loader with Safe and Stable for Farm Operations
Product Description
Basic Info.
| Model NO. | HZM811t | Type | Medium-sized Loader |
| Operating Weight | 2940kg | Stadrard Engine | Changchai4g33 |
| Rated Power | 25kw | Option Engine | Cummins Qsf2.8 EPA Tire 4 |
| Lxwxh | 4827X1520X2434 | Standard Tire | 20.5/70-16 |
| Attachment | Pallt Fork, Snow Blade, etc. | Transport Package | Naked |
| Specification | ROPS FOPS CE EAC | Trademark | HZM |
| Origin | Shandong Weifang | HS Code | 84295100 |
| Production Capacity | 6000 a Year |
Product Description
Features:
Safe condition: loader cab we choose ROPS FOPS standard,cab inside we move starter key to joystick box avoid of leg touch key,seat with safe belt keep you seat better in the hard work condition.
Silicone oil shock absorber make more comfortable for the driver.
Operate condition:flexible turn angle design even in the narrow and hard road you can turn loader easy,in the cab big room and complete wind screen glass provide operator with excellent view. Adjustment dashborad will help operator drive better. under the counterweight we design individual battery charge plug so operator can charge power easy.
Fix condition:Thanks tips side cab design make operator change transmission oil and filter very easy etc.
Warranty:
1-Parts for Two Years Or 2000 Hours Including the Gear box, torque converter, drive axle assembly, electric control assembly, hydraulic lift pump, transmission pump, steering motor, lift cylinders, tilt cylinder, steering cylinders, quick attach cylinders.
(Engine Covered by Cummins)
2-For One Year Or 1000 Hours, Cooling System fan, radiator, air distribution system, big and small bearing bush, flywheel housing, flywheel gear rim. Brake hub, wheel hub, brake
devices, master bearing, compressor and related components,
3-Warranty Not Included, Hydraulic Hoses and Fittings, wearing fittings like filters and sleeves, lights and
other electrical components, glass and tire. Failure Due to Not Maintaining Unit as Per Service Instructions.
Configuration:
Changchai ZN390Q engine, 4WD, 31.5X15.5-15tire , joystick, standard bucket,, VARTA Battery, floating function, luxury cabin with heater, 220V engine preheat, warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, Free parts, tool box.
Standard with 3 hydraulic lines
| Whole drive system | Hydraulic system(torque converter) | |
|
Speicification |
Overall weight(kg) | 2940 |
| L×W×H(mm) | 4827×1520×2434 | |
| Rated bucket capacity(m3) | 0.5 | |
| Rated load(kg) | 1000 | |
| Dump height (mm) | 2000 | |
| Dump distance(mm) | 800 | |
| Wheel base(mm) | 1260 | |
| Thread(mm) | 2150 | |
| Total time(s) | 8 | |
| Engine | Model | ChangchaZN390 |
| Type | Direct injection, Horizontal, Water-cooled, 3 stroke | |
| Rated power(KW) | 25 | |
| Rated speed(r/min) | 2400 | |
| Steering system | Max. turning angle | 40 |
| Min turning radius(mm) | 3800-4200MM | |
| Hydraulic system | Working pressure | 16Mpa |
| Boom lifting time | 4.2S | |
| Tank capacity | 30L | |
| Tires | Standard tires | 20.5/70-16 |
| Stand bucket | Width (mm) | 1600 |
