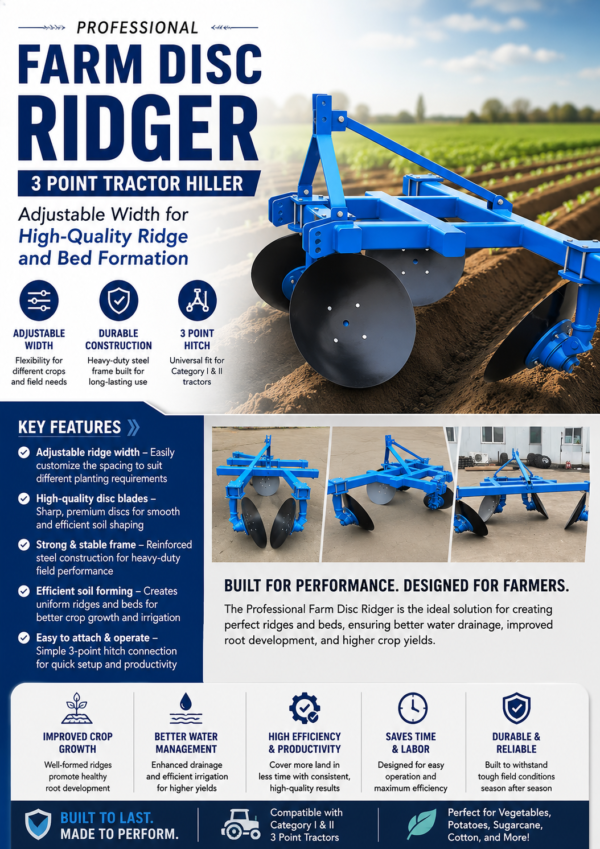

Professional Farm Disc Ridger – Adjustable 3 Point Tractor Hiller

Professional Farm Disc Ridger 3 Point Tractor Hiller with Adjustable Width for High-Quality Ridge and Bed Formation

Model	unit	80	120	140	180	260
Working width	mm	800	1200	1400	1800	2600
Ridging width	mm	200~450		300-500
Ridging height	mm	150-260		150~300
Ridging of rows		1(2)	1(2)	1	1(2)	1(2)
Total weight	kg	120	140	220	200	246
Matched power	hp	20~30	30-40	50-60	60-70	70-100
Linkage		Three-point suspension I type		Three-point suspension II type
The items selectable		Rear cover board

Farm machinery disc ridger for tractors 2 rows ridging machine farm ridger plough is suitable for ridging after the tillage in the farm field. It consists of heavy duty tubular box frame, 3 point hitch system and the disc blades are made after the heat treatment in the material of 65 Mn spring steel that has better hardness.This machine is reasonable for construction, conveniently to transport, easy to adjust, and conveniently to use and maintain.

Advantages:
1) The disc blades are made after the heat treatment in the material of 65Mn spring steel.
2) The discs can be notched and plain to your choice.
3) There two series of this disc ridger. Two discs and four discs respectively that make 1 or 2 ridging rows.
You can choose the nos of disc to meet the ridging rows need.
